Hospital Steam Shower Generator

China Hospital Steam Shower Generator supplier

Large Image :  Hospital Steam Shower Generator

Product Details:

Place of Origin: China
Brand Name: TOLO
Certification: CE
Model Number: TOLO-W3-27

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: 1 set/carton
Delivery Time: 1~2days
Payment Terms: T/T, Paypal, Western Union,
Supply Ability: 2000sets/month
Detailed Product Description
Power Output: 7.5kw Product Name: Steam Shower Generator
Voltage: 110V/220V/380~415V Time Setting: 1-60mins
Phase: 3 Heating: Heat Elements

7.5kw Electronic Control Steam Shower Generator 400v For Hospital





Sauna Steam Generator 7.5kw Quick Detail:



  1. control way: wired touch screen control panel
  2. Power output: 7.5kw
  3. Voltage: 110V/220V/380~415V
  4. Time Setting: 1-60mins
  5. Temperature range to control: 95 F degree~131 F degree
  6. Temperature range to show on control panel: 43 F degree ~140 F degree
  7. Main Material: stainless steel tank shell
  8. Color: grey green
  9. phase: 3
  10. Current: 31.8A
  11. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
  12. Auto function: auto water inlet , auto drain, auto flushing, auto power off
  13. Shape: Cuboid
  14. Room volume(cubic meter): 6~9
  15. Usage: steam shower room
  16. working time: 1~60 minutes or long time
  17. Heating: heat elements
  18. Power source: Electric







Description:





1. TOLO-E steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.
Electronic controls with a digital display to enable temperatures of 30 to 60 degrees centigrade and time duration 1 to 60 minutes or continual operation with additional keys for a steam room light, keyboard lock, manual drain down etc.Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.



2.TOLO-E steam generators feature an advanced electronic control with on board diagnostics having a series of LEDs to show each operation of the gernerator. Each generator has 3 groups of heating elements to provide sequential heating (from cold all 3 groups operate for maximum power and rapid heating, when the steam room temperature is almost reached, then group 1 stop, when the required temperature is achieved, then group 2 stop. The group 3 alternates on and off to gently maintain the temperature without large fluctuations improving user comfort).TOLO-E steam generator have middle size to install easily. They have 304 stainless steel water tank, 304 stainless steel heating element with high quality Teflon to prevent water scale.


3.The TOLO-E waterproof touch screen controller has 6 bottoms to set working stages. working time 1-60mins can be adjusted or long ,the setting temperature of the steam will be in 6-60C degrees and can be adjusted between 35-55C degree (95-131F degree).







Applications:





Used in wellness center, bakery(fermentation),hotel,hospitals, nursing homes, rehabilitation centers







Specifications:







Parameters:



Model

Power KW

Room volume (m³)

Power requirements           50/60Hz

Current (A)

Power        wire (Copper)          N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

TOLO-E30

3.0

2~4

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

TOLO-E40

4.0

3~5

220-240V~

18.2

3*2.5

TOLO-E45

4.5

3.5~5.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

TOLO-E50

5.0

4~6

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

TOLO-E60

6.0

5~7

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

TOLO-E70

7.0

5.5~8.5

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

TOLO-E80

8.0

7~10

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

TOLO-E90

9.0

8~11

380-415V3N~

13.6

5*2.5

16.4~17

TOLO-E105

10.5

9~12

380-415V3N~

15.9

5*2.5

TOLO-E120

12.0

11~14

380-415V3N~

18.2

5*2.5

TOLO-E150

15.0

13~18

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

TOLO-E180

18.0

16~22

380-415V3N~

27.3

5*4.0

TOLO-E225

22.5

21~28

380-415V3N~

34.1

5*6.0

TOLO-E240

24.0

22~30

380-415V3N~

36.4

5*6.0

Notice: KSA-E steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request. American power input 110V is available according to your requirement.

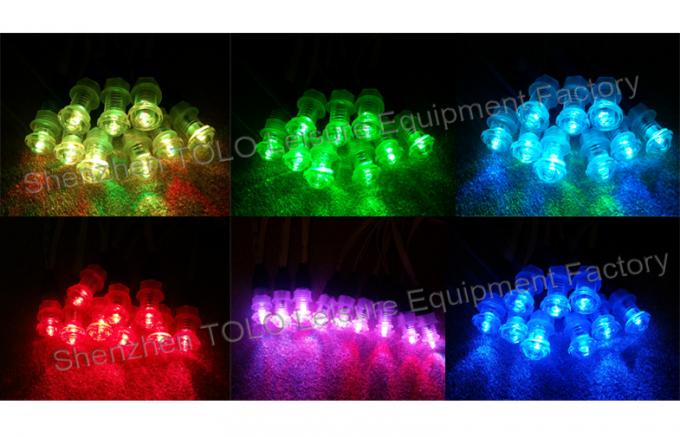

LED lights for steam shower room:RGB colorful change automatically
