Product Details:
Payment & Shipping Terms:
|
| Power: | 3.6kw | Voltage: | 220v |
|---|---|---|---|
| Material: | Stainless Steel | Control Type: | Build-in Control |
| Heating Element: | 316 Stainless Steel | Fit For: | 2 Person Room Size |
| Volume For Sauna Stone: | 1 Carton |

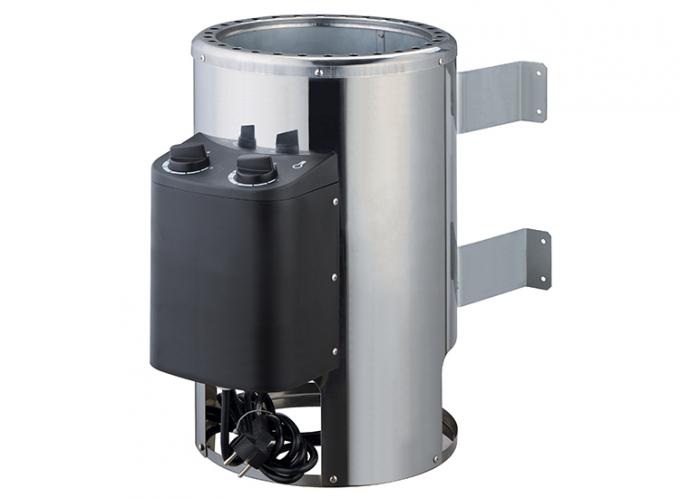

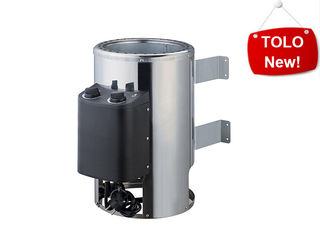

TOLO Electic Sauna Heater 3.6kw Stainless Steel Sauna Oven Latest Model
| Type | TOLO-MR3.0 | TOLO-3.6 |
| Capacity(max) | 3.0KW | 3.6KW |
| Max Volume | 2-4m³ | 2-4m³ |
| With Vaporvisor or not | NO | NO |
| Voltage | 230V AC | 230V AC |
| Water protecion | IPx4 | IPx4 |
| With/without Cable | NO | NO |
| Timer | Yes | Yes |
|
Temperture sensor/ |
Yes | Yes |
Outside controller:

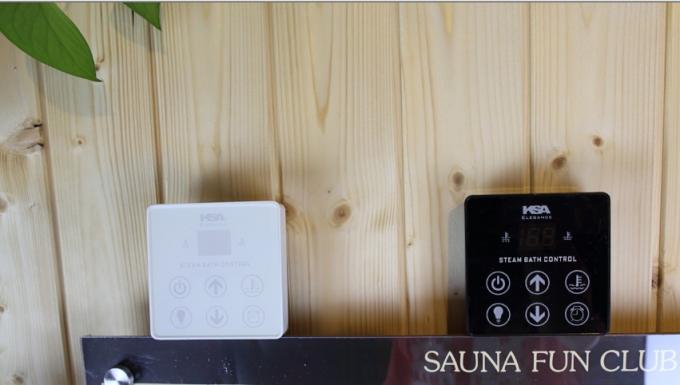

TOLO-MR30 touch screen controller operation:
ON/OFF:
to switch on and off of the whole system. Press this button can switch on the generator and open the water inlet solenoid valve to fill in water. When the water level reaches the required minimum water level, system begins to heat up (if current temperature is lower than setting temperature). Once the water level reaches its maximum level, inlet valve closes and the system enter the automatic working process. If the system was shut off by pressing ON/OFF button previously, system will adapt the default temperature and time setting; otherwise if the system is shut off automatically when setting time is up, system will adapt the previous temperature and time setting. Then system begins to heat up and produce steam after several minutes. Press the ON/OFF button again will shut down the system manually and the system will drain automatically.
SET: Temperature and Time setting button. Press
to adjust the working time. The previous setting time or the default setting time 45 minutes if the system has been turned off and restarted, or the remaining working time(during working time), you could set the working time now. Press “▲” or “▼” button to adjust the working time to the value you want, or press “▲” button until the LCD displays “CH”, after that the system automatically enters long-term working mode. The available temperature range is 35℃～55℃(95℉～131℉),and the default temperature is 43℃(109℉),When the system is in long-term mode, the white LED on the right side of the LCD blinks. When the working time is set, the maximum working time is 60 minutes and the default working time is 45 minutes.
LIGHT:
Switch for the external light. The button can be used as the switch for the external light as long as the system is connected to power supply. The LED is on when the light is turned on.
▲ Increase the temperature or time.
▼ Decrease the temperature or time.
TOLO-MR30 sauna heater fucntions:
The Thermostat control the temperature by turning operating knob. (Chart 2)
The heater should be equipped with proper size of sauna room. During 30-60 minutes, it reaches the selected temperature and remains (refer to table 1). Circuit diagram see CHART 8.
The timer <TOLO-A sauna series ).<Refer to table 1 unit 1>
The timer is the main power switch in heater
The timer automatically cut off the power if it exceeds the setting time.
The timer 8+4 hours preset
The timer has 1-8 hours presetting time and 1-4hours operating time. Turn the knob to anywhere between1-4hours on the operating time scale if starting the heater at once
