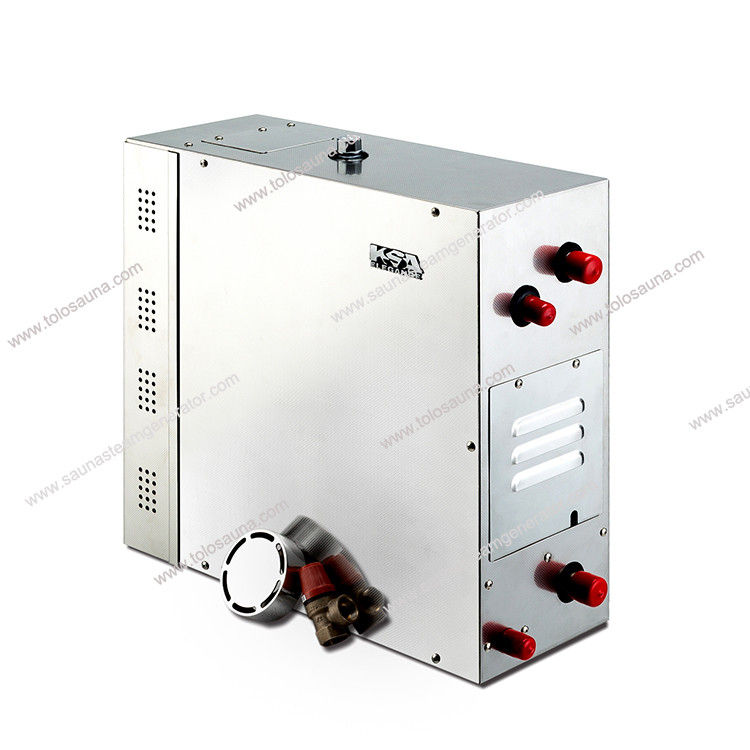

220V 5000W Electric Steam Generator Auto Flushing with over-heating function

220V 5000W Electric Steam Generator Auto Flushing with over-heating function

TOLO Steam Bath Generator Quick Detail:

The improvements of TOLO steam generator differ from the other brand generator:

If one steam generator doesn't have perfect drain system, its quality is always not good enough.

TOLO steam generator use 34" full-bore.(Full-bore: full-bore straight-through type with connection between valve andpipeline or straight pipe, equal sectional area and "0" loss of flow.) It solved the water scale block the drain valve problem.

There has four valves in the steam generator industry. They are manual drain valve, old type automatical drain valve, automatical push-pull drain valve and our 3/4" full-bore auto drain valve. These 3 valves except our 3/4" full-bore auto drain valve, all of them have different problem.

1.Manual drain valve: you have to drain by yourself after each time steam bath.

2.Old type automatical drain valve: the pipe is too small. Once there has some water scale in the water tank. After some months, the drain valve will be blocked.

3.Automatical push-pull drain valve: sometimes it will not push back after it pulled, and there has leakage probelm.

4.At last, our 3/4" full-bore auto drain valve is testing for several years without any problem. Only TOLO steam generator has 3/4" full-bore auto drain valve.

Description:

TOLO-E steam generators have an auto drain down with a self flushing cycle to dump the boiler contents in a controlled manner - at the end of each steaming session the drain valve will open and after a short time the cold water inlet valve will open to give a period of continuous flushing and draining. Flushing and draining the boiler reduces the build up of damaging limescale, cooling the elements before the final drainage helps prolong their useful life.

Electronic controls with a digital display to enable temperatures of 30 to 60 degrees centigrade and time duration 1 to 60 minutes or continual operation with additional keys for a steam room light, keyboard lock, manual drain down etc.Safety features include boil dry protection, thermal overload safety cut out and pressure relief valve.

4.Type: Wet Roma Steam bath

Applications:

For 3~6m³ residential and commercial steam baths

A daily steam bath is a remarkable way to indulge yourself. It causes the perspiration that is the single healthiest thing you can do for your skin. Stress and negativity quickly dissipate in the soft clouds of intense yet comforting heat. A few minutes of steam daily, in the comfort of your own home, is an opportunity to improve your overall well-being in every way.

Specifications:

1. Control panel with Digital display
2. Control panel used the advanced inducing technology
3. Controls sauna temperature 35 degree to 55 degrees
4. Controls sauna time 1 minute to 60 minutes or long time
5. Intelligent to heat by segment
6. Intelligent to fill water with steam
7. Intelligent to do a self flushing cycle
8. Light can be connected to controller
9. Intelligent to indicate fault with the code
10. Can pause at working
11. To show CH can working for long
12. Intelligent to save two sets of temperature, can individual set time by memory
13. Automatically shuts down when water level is too low
14. Temperature high limit switch
15. Waterproof grade: IPX5
16. Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others
17. Auto function: auto water inlet , auto drain, auto flushing, auto power off
18. We will provide some spare parts to our customer as replacement.

Parameters:

Competitive Advantage:

Every TOLO-E steam generator is subjected to 6 strictly controlled tests:
    1. 48 hour continual test for circuit board
    2. Controller is tested for all functions
    3. High voltage test
    4. Earthing resistance test
    5. Power test.
    6. Operational test of every steam generator before packing
